687120149022
Manufacturer:
Wurth Electronics
Mfr.Part #:
687120149022
Datasheet:
Description:

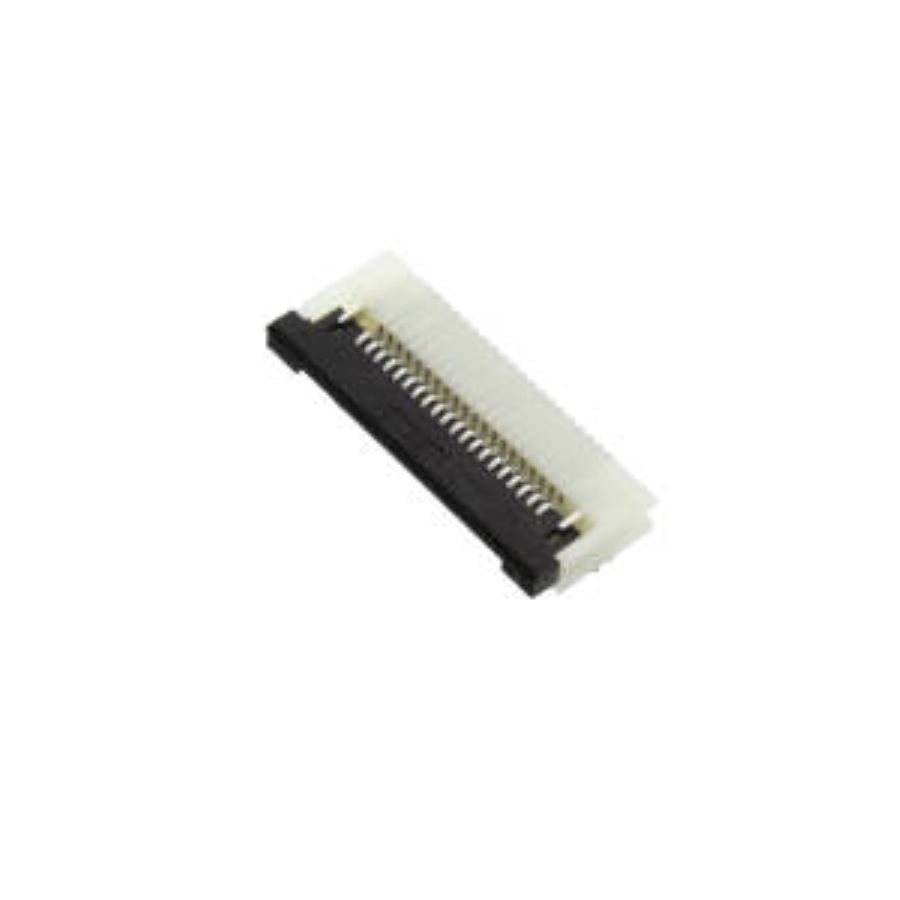

FFC / FPC SMD/SMT Number of Positions:20 500 mA 50 V
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 20 |
| Packaging | Reel |
| Voltage Rating | 50 V |
| RoHS | Compliant |
| Lead Pitch | 500 µm |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 508 µm |
| Current Rating | 500 mA |
| Flammability Rating | UL94 V-0 |
| Orientation | Horizontal |
| Operating Supply Voltage | 50 V |
| Gender | Receptacle |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Contact Resistance | 50 mΩ |
| Actuator Material | Nylon, Polyamide |
Stock: 3366
Distributors
pcbx
pcbxUnit Price$1.03273
Ext.Price$1.03273
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.03273 | $1.03273 |
| 10 | $1.01630 | $10.16300 |
| 25 | $1.00013 | $25.00325 |
| 50 | $0.98421 | $49.21050 |
| 100 | $0.91414 | $91.41400 |
| 300 | $0.87775 | $263.32500 |
| 500 | $0.84281 | $421.40500 |
| 1000 | $0.73769 | $737.69000 |
